Product Description
Strips cables with standard materials without any need for manual adjustment. Fine adjustable zero correction of the blade setting to special material requirements, e.g. due to large temperature differences. Compact, handy and lightweight tool for common cable cross-sections and insulating materials. For single, multiple and fine stranded cables of 0.2 up to 6 mm² with standard insulation. Narrow head style for use in confined areas. With wire cutter for copper and aluminium wires up to 2.5 mm². With adjustable length stop from 6.0 - 18.0 mm for constant stripping lengths.
Technical attributes
| Length | : | 180 mm | |
| Width | : | 75 mm | |
| Height | : | 21 mm | |
| Weight | : | 151 g |
Documents
Detailed description
Short overview
- Self-adjusting wire strippers for solid, multicore and finely stranded conductors
- For single layer standard insulation
- With wire cutter for Cu and Al conductors up to 2.5 mm²
- Housing made of glass fibre reinforced plastic
- Blade made of oil-hardened special tool steel
- Blade can be easily replaced

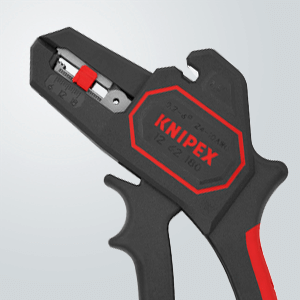

 | Are light in the hand, and simple to use. The lightweight with tangible benefits The Knipex 12 62 180 is a good choice if you occasionally need to strip cable, e.g. when instaling lighting, during model making, work on a camper van or when instaling new sockets. It greatly reduces strain, both for DIY enthusiasts and for professional users. Firstly, there is no need to adjust to different cable cross-sections because the pliers do this automatically. Secondly, thanks to the slim head shape, it is also possible to strip the wire in poorly accessible areas, such as in junction boxes. It has a wire cutter for shortening cables and cutting Cu and Al conductors up to 2.5 mm², so users need one less tool. |
Convenient wire stripping of single layer standard insulation

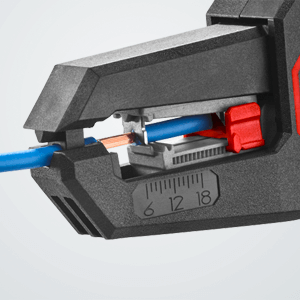

The cable to be stripped is inserted in the pliers from the front and pushed up to the individually adjustable length stop. After this, the user only needs to press the handle. The wire stripping process takes place automatically. The insulation is only cut as deeply as needed for removal of the insulation layer.
Saves time and effort – increases safety
Anyone looking for a convenient substitute for simple manual standard wire strippers or for the makeshift wire stripping diagonal cutters famous in electrician circles is well-served by the Knipex 12 62 180 automatic wire strippers. There is no need to adapt manual force to the insulation thickness or strip the insulation by hand.
 | Wire strippers from Knipex: built for high benefits and long service life Knipex has a wide range of special products for the electronics and electrical industries. During wire stripping, wire strippers from Knipex protect the conductor in the cable and offer utmost comfort for the user. The great benefits of the tools and safe, comfortable use in everyday work are the results of decades of experience building tools, constant product development and the commitment by Knipex towards high quality standards. Pliers from Knipex are built for many years of use in a professional environment. |
No damage to the conductor.
Wire cutter up to a maximum 2.5 mm².
Wire stripping in confined spaces.
Accurate wire stripping of 0.2 – 6.0 mm².
