Product Description
6 functions in one pair of pliers. multifunctional pliers for the electrical installation; to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers. in case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active. the intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
Technical attributes
| Length | : | 210 mm | |
| Width | : | 63 mm | |
| Height | : | 21 mm | |
| Weight | : | 260 g |
Video
Detailed description
 |
 | The multifunctional tool for electricians For cutting cable, for wire stripping, deburring, bending, gripping and crimping Due to their many functions, these universal pliers mean there is no need to constantly change tools. Just one tool is adequate for the most important, recurring work steps in electrical installation. With integrated pawl The activated pawl holds the cutting edges closed while other functions remain in place. With this intelligent closing mechanism, you can grip without opening the pliers. The cutting edge remains closed and protected. |
Versatile tool for professional users
The gripping surfaces of the installation pliers are smooth at the tip, enabling single conductors to be held and positioned without being damaged. There are profiled gripping surfaces and a pipe grip for gripping flat and round material. The induction hardened precision cutting edges produce clean cuts on Cu and Al cables up to Ø 15 mm. Thanks to their non-slip multi-component grips, the installation pliers are safe and comfortable to use.
The electrical installation pliers save time, space and weight. At 200 mm long, they fit in any tool bag and with a weight of just 280 g they are light weight – especially compared to a number of individual tools.
 | Knipex quality and engineering services – Made in Germany Two aspects are vital to the quality of a tool: the performance and durability. At Knipex, pliers are developed from the point of view of the user, and focus on their direct application. Knipex electrical installation pliers replace several tools. Uses are equally diverse – and last for several years of tough work. We forge our tools from quality materials, machine them with high precision on modern machinery and harden them carefully with multiple stage heat treatment. Every pair of Knipex pliers represents more than 130 years of specialist know-how. |
Short overview
- Compact multifunctional tool
- Six functions combined in one tool
- Cuts cable up to Ø 15 mm
- Wire stripping capacities for single conductors: 0.75 – 1.5 mm2 and 2.5 mm2
- Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm2
- Low weight (280 g)
- Handles with multi-component grips
- With pawl for gentle gripping
- Forged from high grade special tool steel, oil hardened in multiple stages
The pliers for electrical installation combine six functions in one pair of pliers.
Pronounced outer edge for deburring and widening holes.

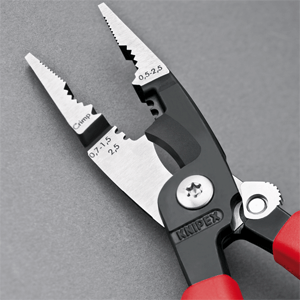

Wire stripping holes for conductors of between 0.75 to 1.5 and 2.5 mm².

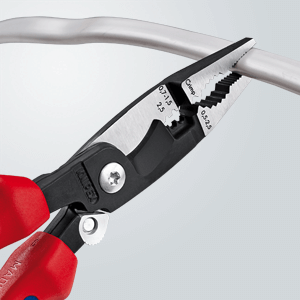

Cable shears for cutting copper cable.
